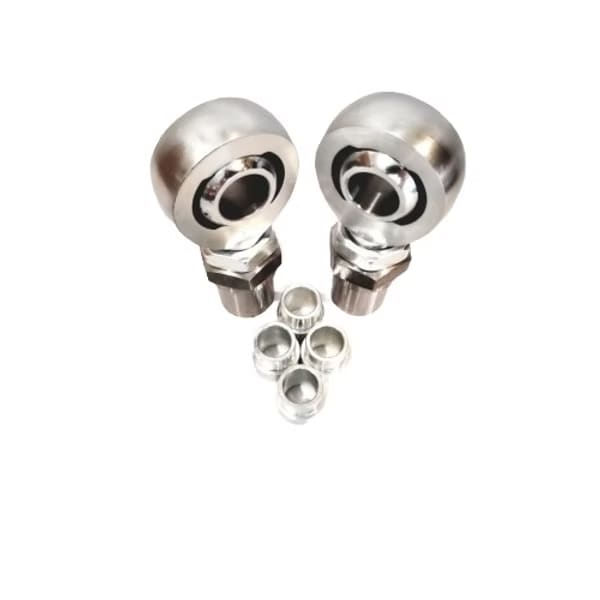

1.25" X 1" Bore w/HMS 1"-3/4" (1LH & 1RH)

Kit Includes:

• 1  RH 1-1/4”-12 Thread, 1” Bore Hole
• 1  LH 1-1/4”-12 Thread, 1” Bore Hole
• 1  RH Jam Nuts
• 1  LH Jam Nuts
• 1  RH Tube Adapters
• 1  LH Tube Adapters
• 4 1" High Misalignment Spacers 1"-3/4"

• Thread Size: 1 1/4"-12
• Bore: 1  (1.00)
• Ball Width: 1 3/8"  (1.375 )
• Radial Load: 72,000 lbs
• Chromoly: 4130
• Teflon Kevlar Liner

• Thread: 1.25"-12
• Length: 2.00"
• Width: 2.00"
• Material: 1045 Steel
  • Fits in 2" (2.00) Outer Diameter Tube with (.250)Wall Thickness with a 1-1/2” (1.50) Inside Diameter Hole
